Cementless Femoral Stem
Sterile
| REFERENCE | DIAMETER | CONE |
| BP-STEM-SC-2 | 2 | Small |
| BP-STEM-SC-3 | 3 | |
| BP-STEM-SC-4S | 4 | |
| BP-STEM-SC-4 | Medium | |
| BP-STEM-SC-5 | 5 | |
| BP-STEM-SC-6M | 6 | |
| BP-STEM-SC-6 | Large | |
| BP-STEM-SC-7 | 7 | |
| BP-STEM-SC-7,5 | 7,5 | |
| BP-STEM-SC-8 | 8 | |
| BP-STEM-SC-9 | 9 | |
| BP-STEM-SC-10 | 10 | |
| BP-STEM-SC-11 | 11 |

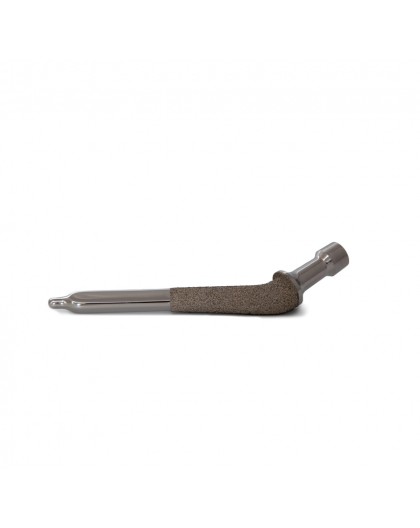

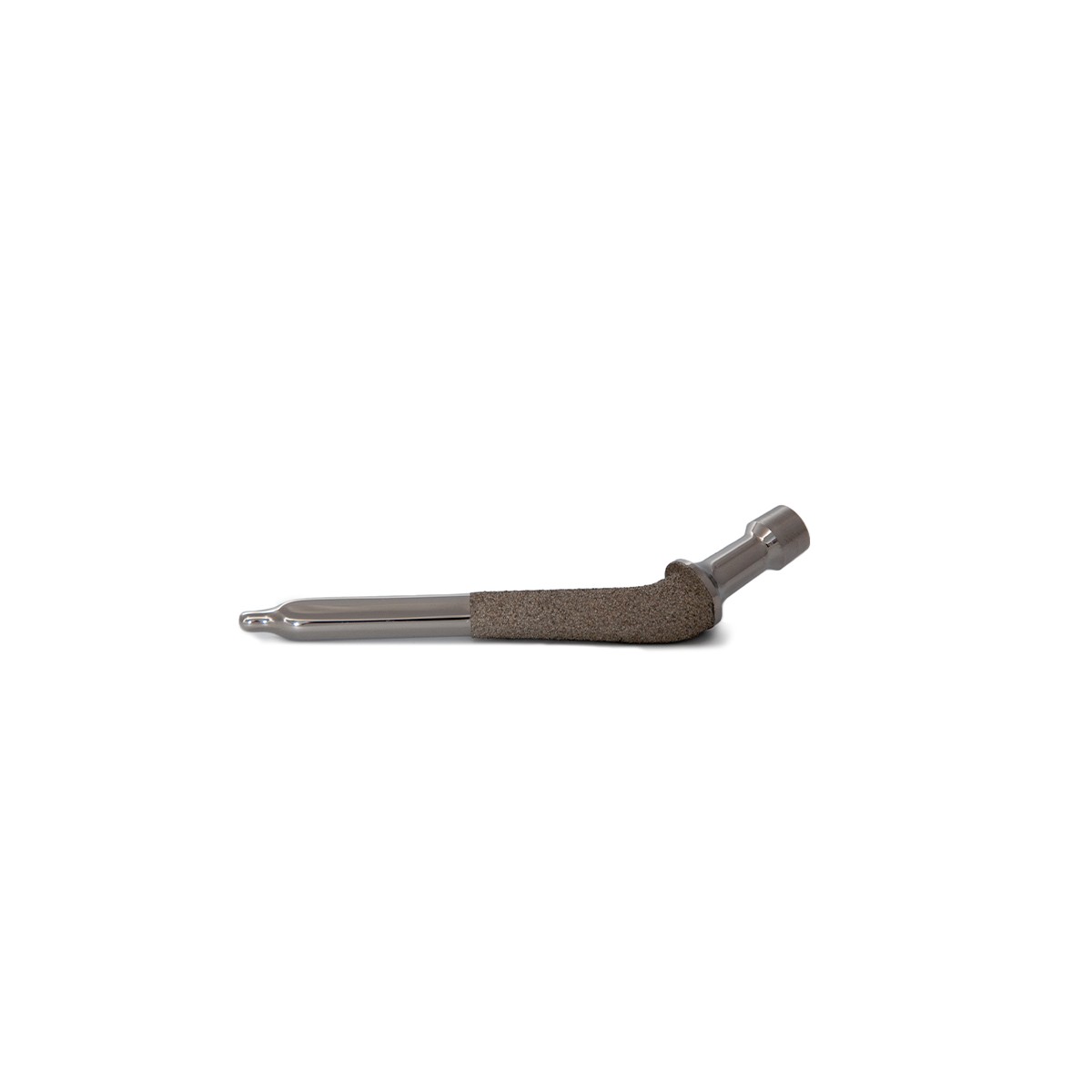

Monobloc stem made out of titanium ISO 5832-3, a light, resistant, and bio-compatible material.
The stem is highly polished, with a porous titanium surface treatment for osteo-integration.
The prosthesis has an anatomical shape.
Two symmetrical flats sides which help with deformations of the femoral shaft and rotational stability.
The morse cone allows interlocking and perfect blocking of the different femoral heads (diameter and heigth).
The sizes vary with millimetric incremental steps, from 2 to 11, homothetically.
| THR Components Chart | ||||
| STEM | HEAD | CUP | ||
| Diameter | Cone | Diameter | Diameter | |
| 2 | Small | Ø8 & 10 | 8/12 8/14 10/16 |
|
| 3 | ||||
| 4S | ||||
| 4 | Medium | Ø12 | 12/18 12/20 |
|
| 5 | ||||
| 6M | ||||
| 6 | Large | Ø14, 16 & 19 | 14/22 16/24 16/26 19/28 |
|
| 7 | ||||
| 7,5 | ||||
| 8 | ||||
| 9 | ||||
| 10 | ||||
| 11 | ||||
| Composition | Titanium |
| Surface | Porous titanium |
| Finish | Highly-polished |
| Sterile | Yes |
No customer reviews for the moment.
Femoral Rasp
REFERENCE DIAMETER IMPLANTS BP-RASP-2 2 Cemented StemCementless Stem BP-RASP-3 3 BP-RASP-4S 4S BP-RASP-4 4 BP-RASP-5 5 BP-RASP-6 6 BP-RASP-7 7 BP-RASP-7,5 7,5 BP-RASP-8 8 BP-RASP-9 9 BP-RASP-10 10 BP-RASP-11 11
Conical Reamer
REFERENCE DIAMETER COMPLEMENTARY ANCILLARIES IMPLANTS BP-ALES-2 2 Handle for AO InstrumentsDrill Cemented StemCementless Stem BP-ALES-3 3 BP-ALES-4 4 BP-ALES-5 5 BP-ALES-6 6 BP-ALES-7 7 BP-ALES-7,5 7,5 BP-ALES-8 8 BP-ALES-9 9 BP-ALES-10 10 BP-ALES-11 11
Stem Impactor
REFERENCE DESCRIPTION COMPLEMENTARY ANCILLARIES BP-IMP-STEM Stem Impactor Marc Even Hammer 350gCup Holder
Marc Even Hammer 350g
REFERENCE DESCRIPTION COMPLEMENTARY ANCILLARIES BP-MAR-350 Marc Even Hammer 350g Stem ImpactorHead Impactor
Drilling Guide
REFERENCE DIAMETER COMPLEMENTARY ANCILLARY IMPLANTS BP-GP-3,7 Ø3,7 Drill Cemented and Cementless Stem Cemented and Cementless Cup BP-GP-4,5 Ø4,5
Trial Femoral Stem
REFERENCE DIAMETER CONE BP-TES-2 2 Small BP-TES-3 3 BP-TES-4S 4 BP-TES-4 Medium BP-TES-5 5 BP-TES-6M 6 BP-TES-6 Large BP-TES-7 7 BP-TES-7,5 7,5 BP-TES-8 8 BP-TES-9 9 BP-TES-10 10 BP-TES-11 11
2 other products in the same category
Femoral Head
Femoral Head Variances CONE DIAMETER NECK Small Ø8 -1 mm 0 mm +1 mm Ø10 -1 mm 0 mm +1 mm Medium Ø12 -2 mm 0 mm +2,5 mm +5 mm Large Ø14 0 mm +3 mm +6 mm Ø16 -3 mm 0 mm +2 mm +4 mm +6 mm +9 mm Ø19 -3 mm 0 mm +3 mm +6 mm +9 mm
Cementless Acetabular Cup
REFERENCE INTERN DIAMETER EXTERN DIAMETER BP-COT-SC-8/12 Ø8 Ø12 BP-COT-SC-8/14 Ø14 BP-COT-SC-10/16 Ø10 Ø16 BP-COT-SC-12/18 Ø12 Ø18 BP-COT-SC-12/20 Ø20 BP-COT-SC-14/22 Ø14 Ø22 BP-COT-SC-16/24 Ø16 Ø24 BP-COT-SC-16/26 Ø26 BP-COT-SC-19/28 Ø19 Ø28
