Cemented Acetabular Cup
Sterile
| REFERENCE | INTERN DIAMETER | EXTERN DIAMETER |
| BP-COT-8/12 | Ø8 | Ø12 |
| BP-COT-8/14 | Ø14 | |
| BP-COT-10/16 | Ø10 | Ø16 |
| BP-COT-12/18 | Ø12 | Ø18 |
| BP-COT-12/20 | Ø20 | |
| BP-COT-14/22 | Ø14 | Ø22 |
| BP-COT-16/24 | Ø16 | Ø24 |
| BP-COT-16/26 | Ø26 | |
| BP-COT-19/28 | Ø19 | Ø28 |

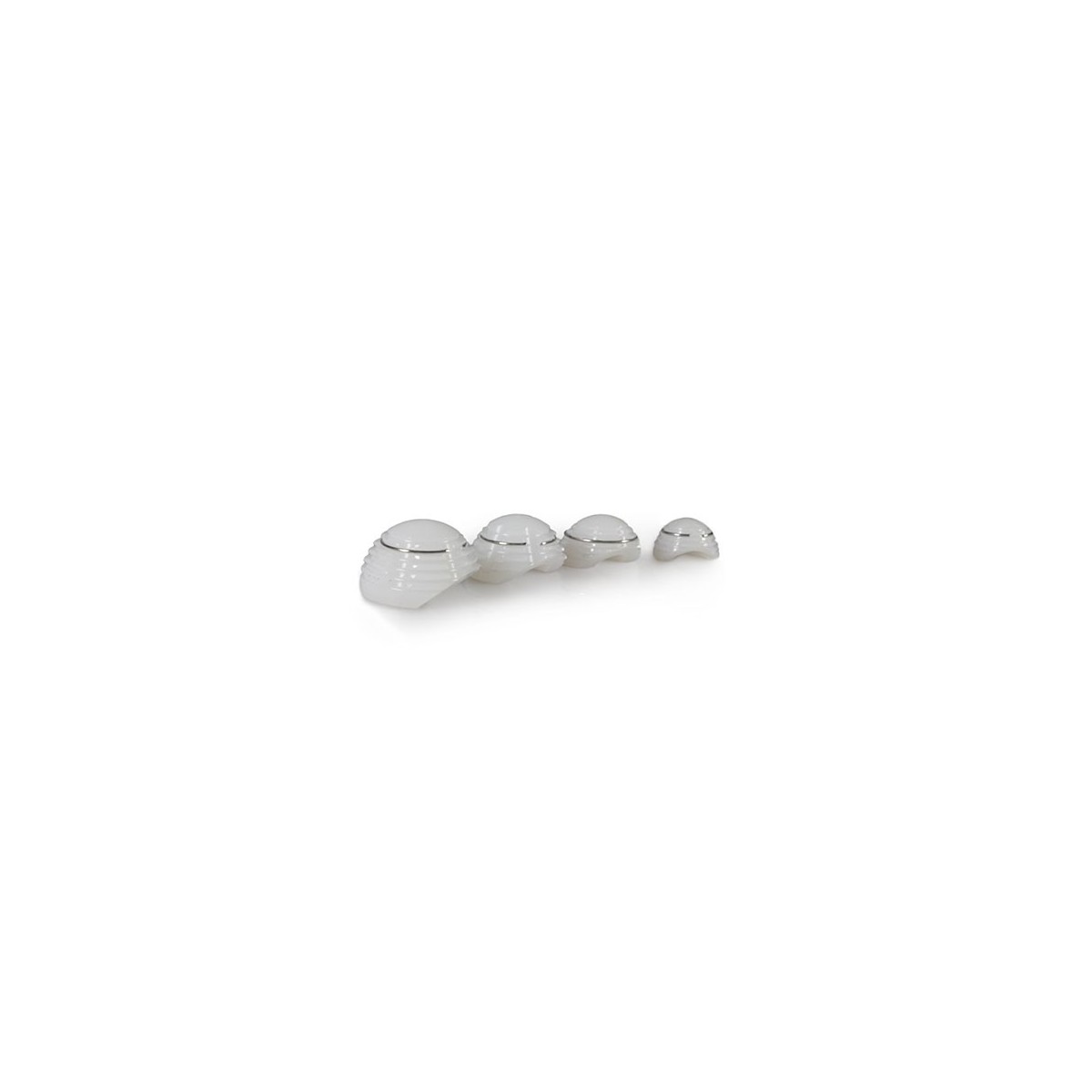

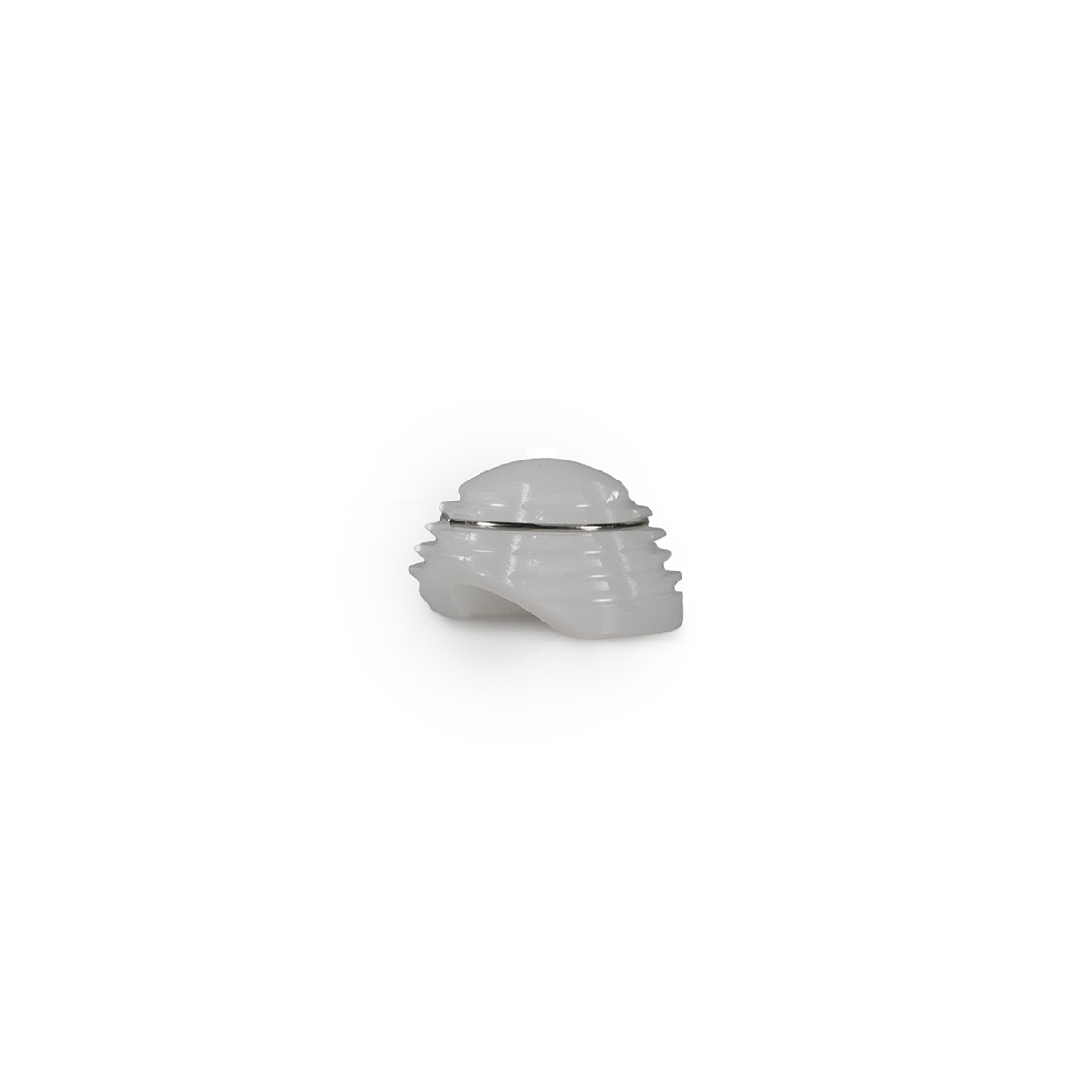

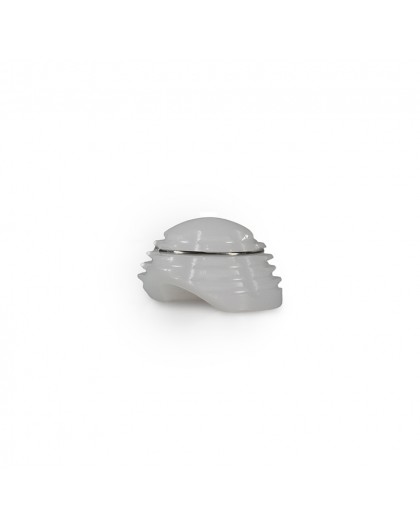

Non dysplasic hemispheric acetabular cup.
Machined in high performance polyethylene (UHMWPE) ISO 5834-1: excellent abrasion resistance; high molecular weight; radiopaque material; fusion T°: 130 to 136°C.
The grooves allows the cement to hold better on its surface.
A stainless steel cercle is placed near the top for X-ray check of the implant.
The extern diameters available are: Ø12, 14, 16, 18, 20, 22, 24, 26 and 28.
| THR Components Chart | ||||
| STEM | HEAD | CUP | ||
| Diameter | Cone | Diameter | Diameter | |
| 2 | Small | Ø8 & 10 | 8/12 8/14 10/16 |
|
| 3 | ||||
| 4S | ||||
| 4 | Medium | Ø12 | 12/18 12/20 |
|
| 5 | ||||
| 6M | ||||
| 6 | Large | Ø14, 16 & 19 | 14/22 16/24 16/26 19/28 |
|
| 7 | ||||
| 7,5 | ||||
| 8 | ||||
| 9 | ||||
| 10 | ||||
| 11 | ||||
| Composition | Polyethylene |
| Sterile | Yes |
